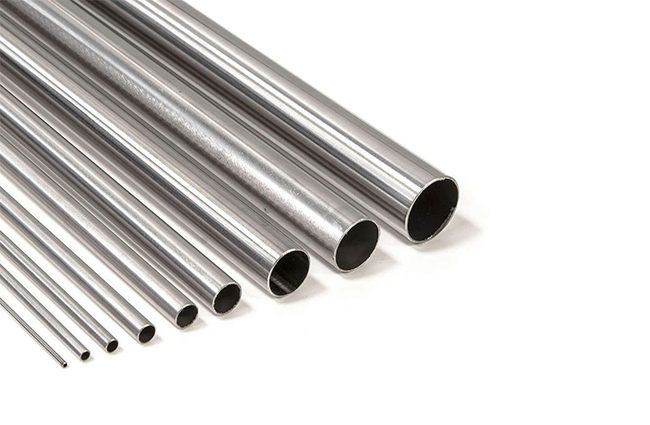

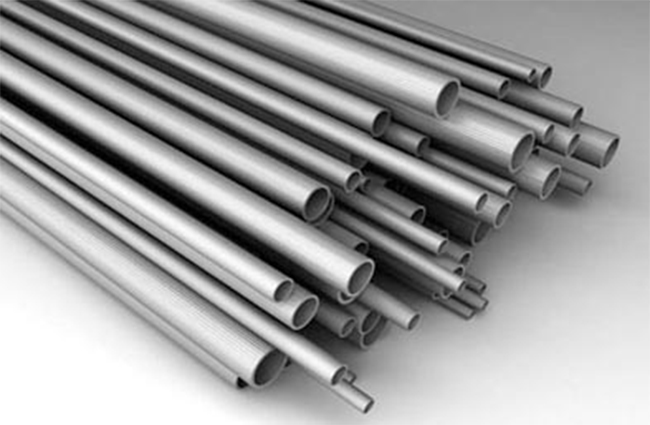

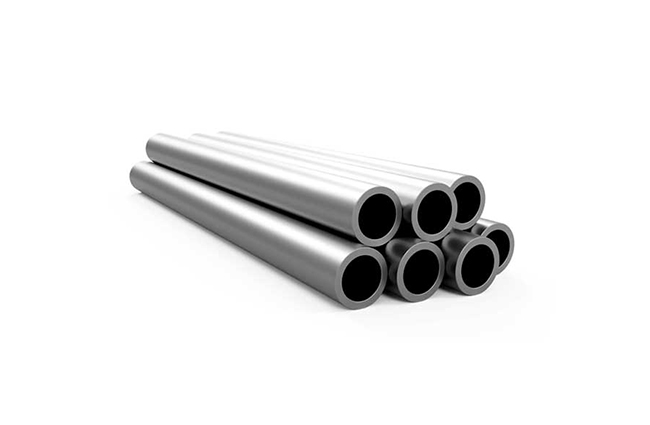

Welded Titanium Pipe

Welded titanium pipes are precision-engineered piping solutions designed for industries requiring lightweight strength, extreme corrosion resistance, and superior durability. Made from CP Titanium or titanium alloys, these pipes offer 40-50% weight savings compared to steel while maintaining excellent mechanical properties in harsh environments, including aerospace, chemical processing, marine, and oil & gas applications.

The welded construction ensures cost-effective production while meeting stringent standards for pressure and structural integrity. With seamless alternatives available for high-pressure applications, welded titanium pipes provide a versatile, high-performance solution for industries demanding longevity, reliability, and reduced maintenance costs.

Key Features & Benefits

Common Titanium Material

Grade 1 (CP Titanium):

High ductility, excellent for forming and welding

Ideal for chemical processing and marine environments

Grade 2 (Commercially Pure):

Optimal balance of strength and corrosion resistance

Used in power plants, desalination, and medical devices

Grade 5 (Ti-6Al-4V):

Ultra-high strength (950 MPa tensile)

Withstands extreme temperatures (-250°C to 500°C)

Preferred for aerospace, defense, and high-pressure oil & gas

Superior Corrosion Resistance

Immune to saltwater, acids (HCl, H₂SO₄), and chlorine

No galvanic corrosion (unlike stainless steel)

Biocompatible (medical implants, pharmaceutical processing)

Lightweight Yet Strong

45% lighter than steel pipes

Higher strength-to-weight ratio than aluminum

Reduces structural load in aircraft, ships, and industrial systems

Customizable Dimensions & Finishes

Sizes: OD 8mm–1300mm (0.3"–48"), wall thickness 0.5mm–7.5mm

Standards: ASTM B338, B861 (welded), ASME B36.10/19

Finishes: Pickled, polished, anodized, or PVD-coated

Cost-Effective Fabrication

Welded pipes are more economical than seamless for large diameters

Automated orbital welding ensures high-precision, consistent joints

Technical Specifications

Parameter	Specification
Material Grades	CP Titanium, Titanium Alloys
Standards	ASTM B338, B861, ASME SB338, DIN 17850
Size Range	OD: 8mm–1300mm (0.3"–48")
Wall Thickness	0.5mm–7.5mm (0.02"–0.3")
Pressure Rating	Up to 10,000 psi (depending on grade)
Temperature Range	-250°C to 500°C (Grade 5)
Surface Finish	Pickled, polished, or custom-coated

Applications by Industry

Aerospace & Defense

Aircraft hydraulic systems (lightweight fuel/oil lines)

Jet engine components (high-temp exhaust ducts)

Spacecraft tubing (thermal stability in vacuum)

Chemical Processing

Acid transport pipes (HCl, sulfuric acid resistance)

Heat exchangers & reactors (long-term corrosion-free operation)

Marine & Offshore

Desalination plants (seawater corrosion resistance)

Subsea pipelines (deep-water oil & gas extraction)

Oil & Gas

Sour gas pipelines (H₂S corrosion resistance)

HPHT (High-Pressure High-Temperature) wells

Medical & Pharmaceutical

Biocompatible fluid transfer (IV systems, implant manufacturing)

Cleanroom piping (non-reactive, sterilizable)

Comparison: Welded vs. Seamless Titanium Pipes

Feature	Welded Titanium Pipe	Seamless Titanium Pipe
Cost	✓✓ (More economical)	✗ (Higher cost)
Size Availability	✓✓ (Up to 48" diameter)	✓ (Limited to smaller diameters)
Pressure Rating	✓ (Good for moderate pressure)	✓✓✓ (Best for ultra-high pressure)
Production Speed	✓✓ (Faster fabrication)	✗ (Slower due to extrusion)
