Titanium Valve

Titanium Valves are precision-engineered flow control components made from high-grade titanium and titanium alloys. These valves are designed to offer outstanding corrosion resistance, particularly in highly aggressive environments such as seawater, chlorides, acids, and industrial chemicals. With excellent mechanical properties and lightweight characteristics, titanium valves are widely used in marine engineering, chemical processing, pharmaceuticals, aerospace, and high-purity industries.

Titanium Valve Types

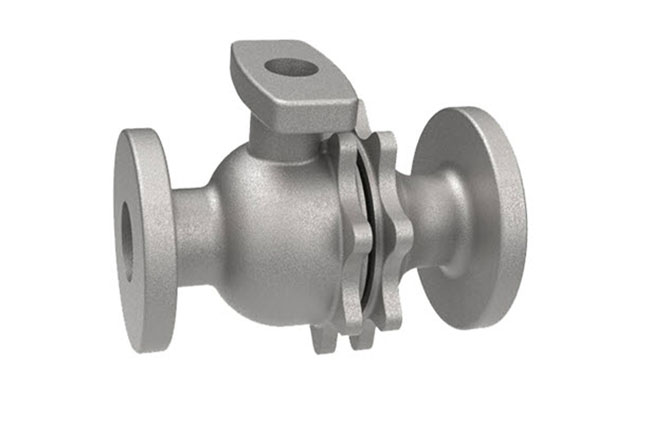

Titanium Ball Valves

Titanium Gate Valves

Titanium Globe Valves

Titanium Check Valves

Titanium Butterfly Valves

All valves can be customized according to your drawings or application needs.

Titanium Valve Key Features

Available in Grades: Gr2, Gr5 (Ti-6Al-4V), Gr7
Excellent resistance to seawater, acid, alkali, and chlorides
Suitable for high-purity and sanitary applications
Lightweight, high strength-to-weight ratio
Options: manual, electric, or pneumatic actuation
Low maintenance and long service life
Machined and passivated surface finish

Titanium Valve Technical Specifications

Specification	Details
Material Grades	Gr2, Gr5, Gr7 (ASTM B348, B381, B367 compliant)
Valve Types	Ball, Gate, Globe, Check, Butterfly, Needle
Size Range	1/2" to 24" (DN15–DN600), custom sizes available
Pressure Ratings	Class 150–600 (PN10–PN100)
Temperature Range	-50°C to +250°C (depends on grade)
End Connections	Flanged, Threaded, Socket Weld, Butt Weld
Surface Finish	Machined, Polished, Passivated
Standards	ANSI, ASME, DIN, JIS, GB
Certifications	ISO 9001, EN10204 3.1, NACE MR0175
