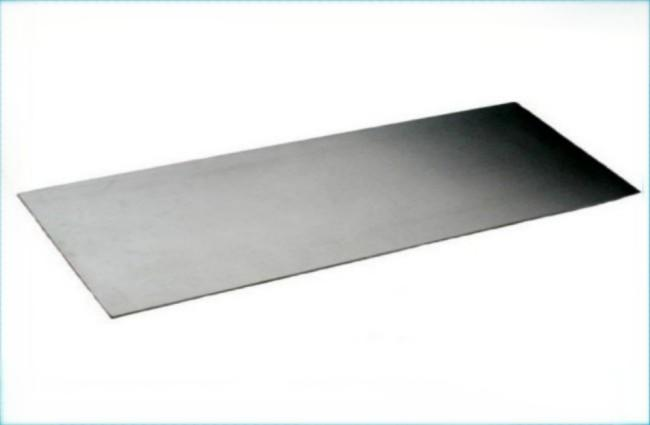

GR5 Titanium Plate

The GR5 Titanium Plate, also recognized as Grade 5 or Ti-6Al-4V Titanium Plate, stands as a benchmark in the titanium alloy industry. A blend of 6% aluminum and 4% vanadium with titanium, GR5 offers an extraordinary combination of high strength, lightweight characteristics, and excellent corrosion resistance. Widely regarded as one of the most versatile titanium alloys, it is the material of choice for applications where reliability, performance, and durability are paramount.

GR5 Titanium Plate Properties

Exceptional Strength-to-Weight Ratio

The GR5 titanium plate offers remarkable strength while maintaining a low density, making it up to 45% lighter than steel. This unique property allows for the creation of robust components that significantly reduce weight in critical applications, enhancing efficiency and performance in industries like aerospace and automotive.

Superior Corrosion Resistance

Exhibiting excellent resistance to a wide range of corrosive media, including seawater, acids, and alkaline solutions, the GR5 titanium plate forms a passive oxide film on its surface. This ensures long-term protection and durability, even in harsh environments, making it a top choice for marine and chemical processing applications.

High-Temperature Performance

Capable of maintaining its mechanical properties at elevated temperatures up to 400°C (752°F), GR5 titanium plates sourced from a reliable GR5 titanium plate factory are ideal for applications involving exposure to heat. These include aerospace engine components and industrial high-temperature equipment, where consistent performance is critical.

Good Fatigue Resistance

With enhanced resistance to cyclic loading, the GR5 titanium plate is perfect for parts subjected to repeated stress. This reduces the risk of fatigue failure and extends the service life of components, making it a preferred material for demanding structural applications.

Biocompatibility

The GR5 titanium plate is biocompatible, making it a reliable choice for medical applications. It excels in scenarios requiring a combination of strength and compatibility with the human body, such as complex orthopedic implants, ensuring both safety and durability.

GR5 Titanium Plate Mechanical Properties

Tensile Strength:	≥895 MPa
Yield Strength:	≥825 MPa
Elongation:	≥10%
Hardness (Rockwell C):	30 - 38

GR5 Titanium Plate Chemical Composition

Element	Content (%)
Titanium (Ti)	Balance
Aluminum (Al)	5.5 - 6.8
Vanadium (V)	3.5 - 4.5
Iron (Fe)	≤0.30
Oxygen (O)	≤0.20
Nitrogen (N)	≤0.05
Hydrogen (H)	≤0.015
Other elements	Trace amounts

GR5 Titanium Plate Dimensions and Tolerances

Thickness: The GR5 titanium plate is available in thicknesses ranging from 0.5mm to 200mm, with precise tolerances to ensure consistent quality across all products.
Width: Standard widths for the GR5 titanium plate span from 600mm to 3000mm. Custom widths can also be provided to meet specific project requirements.
Length: GR5 titanium plates offer bespoke cut-to-length options, with standard lengths up to 6000mm, minimizing material waste and optimizing efficiency for a wide range of applications

GR5 Titanium Plate Surface Finish

Mill Finish: The GR5 titanium plate features a standard mill finish achieved through the rolling process, offering a smooth, matte surface suitable for a wide range of general applications.
Polished Finish: The GR5 titanium plate with a polished finish provides a high-quality, reflective surface that enhances both aesthetic appeal and corrosion resistance. This makes it ideal for applications where both visual appeal and durability are essential.
Pickled Finish: The GR5 titanium plate undergoes a pickling process to remove the oxide layer formed during heat treatment, resulting in a clean, bright surface free of contaminants, ready for further processing or immediate use in various applications.

GR5 Titanium Plate Applications

Aerospace: The GR5 titanium plate is extensively utilized in aircraft structures, including fuselages, wings, and landing gear, as well as engine components. Its exceptional strength-to-weight ratio and superior performance at high temperatures make it a critical material in the aerospace industry.
Medical: The GR5 titanium plate is employed in complex orthopedic implants, such as hip and knee replacements, due to its biocompatibility and high strength. It ensures reliable support and long-lasting durability within the human body.
Automotive: High-performance automotive parts, such as racing car frames, suspension components, and engine parts, benefit from the GR5 titanium plate. Its lightweight properties enhance vehicle performance and fuel efficiency.
Marine: The GR5 titanium plate is ideal for marine applications, including shipbuilding, offshore platforms, and underwater equipment. Its outstanding corrosion resistance ensures long-term reliability in challenging seawater environments.
Industrial: The GR5 titanium plate is applied in industrial equipment like chemical reactors, heat exchangers, and pumps, where resistance to harsh chemicals and high-temperature conditions is essential for operational efficiency.

How to Order GR5 Titanium Plate at BYC Ti

1. Contact Us for a Quote

First, reach out to our sales team with your detailed specifications for your GR5 titanium plate (such as size, quantity, surface treatment, etc.). We will promptly provide you with a competitive quote to help you kickstart your project quickly.

2. Flexible Delivery Options

Whether you require small-batch orders or large-scale deliveries, our GR5 titanium plate factory offers flexible delivery solutions to ensure your order is securely transported and arrives on time. Through our professional logistics partners, we optimize transportation methods to meet your needs and minimize waiting time.

3. Comprehensive Customization Services

We understand that every project has unique requirements, so we provide a wide range of customization services to deliver the perfect GR5 titanium plate:

Size and Shape Customization: Custom-made GR5 titanium plates in specific thicknesses, widths, and lengths to precisely match your project requirements.

Surface Treatment Customization: Personalized surface finishes, including special coatings or textures, to enhance the functionality or aesthetics of your GR5 titanium plate.

Mechanical Property Customization: Through heat treatment and other processes, we adjust the mechanical properties of the GR5 titanium plates (such as strength and toughness) to meet specific application needs.

4. Rigorous Quality Control

At BYC Ti, quality is our top priority. As a leading GR5 titanium plate factory, we implement a comprehensive quality control process for every GR5 titanium plate to ensure product reliability and consistency:

Raw Material Inspection: Rigorous testing of incoming raw materials to ensure compliance with chemical and mechanical specifications.

In-Process Monitoring: Continuous monitoring during the manufacturing process, including rolling, heat treatment, and cutting, to ensure dimensional accuracy and property consistency for each GR5 titanium plate.

Final Testing: Every GR5 titanium plate undergoes non-destructive testing (such as ultrasonic and radiographic testing), mechanical property testing, and chemical analysis. Only products that meet or exceed international standards (such as ASTM B265, ASME SB-265, and ISO 5832-3) are approved for shipment.
