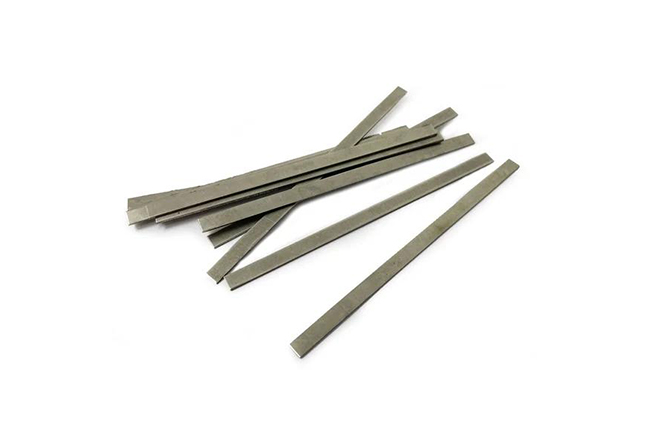

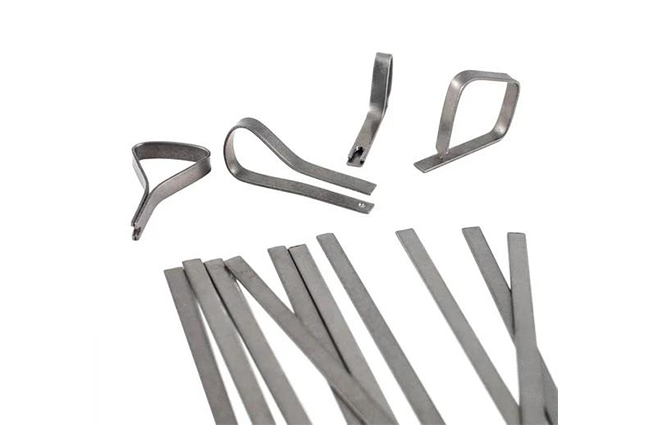

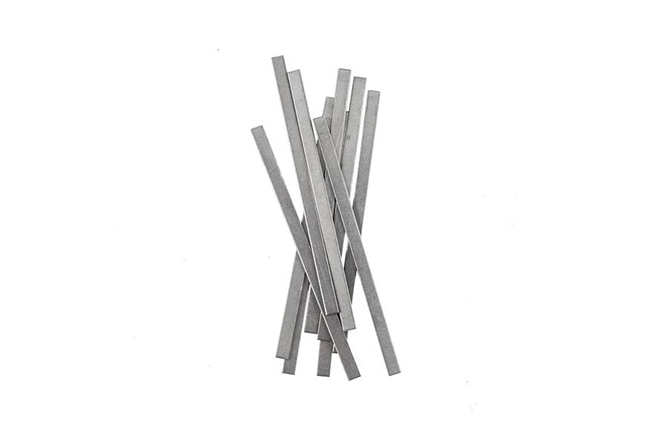

Titanium Welding Strip

BYC Ti's Titanium Welding Strip is engineered for applications that demand high deposition efficiency, uniform cladding thickness, and uncompromising metallurgical quality. Used primarily in titanium cladding, corrosion-resistant overlays, and pressure vessel manufacturing, this product is supplied in coil or cut-length format, ready for plasma welding (PTAW) or GTAW strip welding.

Produced from high-purity titanium or titanium alloy grades, our welding strip offers superior weldability, low oxygen pickup, and excellent surface condition, enabling clean fusion bonds and homogeneous metallurgical transitions in even the most critical applications.

Key Features

High Purity Titanium (≥99.5%) for CP Grades
Uniform Thickness & Width Tolerances
Bright, Oxide-Free Finish – Vacuum annealed and pickled
Excellent Arc Stability in PTAW / TIG Strip Welding
Available in CP and Alloy Grades
Custom Coil, Reel or Plate-Cut Format
Weld-Ready Packaging – Inert atmosphere or sealed foil wraps

Grades Available

Grade	Type	Common Use Cases
CP Grade 1	Commercially Pure	Cladding for heat exchangers, tanks
CP Grade 2	Commercially Pure	Pressure vessels, chemical reactor linings
Ti-6Al-4V (Grade 5)	Titanium Alloy	Aerospace structural overlays
Ti-6Al-4V ELI	Medical/High Purity	Biomedical and cryogenic environments
Ti-Pd Alloy	Corrosion-Resistant	Clad plates for desalination, offshore equipment

Custom chemistries and customer-provided melt specs are available upon request.

Typical Applications

Titanium-clad steel plate welding
Pressure vessel inner surface cladding
Seawater desalination unit overlays
Aerospace structural reinforcement
Corrosion-resistant liner builds in oil & gas sectors
Medical and chemical reactor fabrication

Technical Specifications

Property	Range / Tolerance
Thickness	0.5 mm – 3.0 mm
Width	25 mm – 100 mm (others on request)
Length	Coils up to 100 meters; cut lengths optional
Tolerance	±0.02 mm (thickness); ±0.5 mm (width)
Surface Condition	Bright, scale-free, cleanroom handled
Strip Edge Quality	Slit or ground (radius available)
Weld Process Compatibility	Plasma (PTA), GTAW (strip TIG)
Standards	ASTM B265, B381, AWS A5.16, ISO 5832

Why Use Welding Strip Instead of Wire or Rod?

Higher Deposition Rate → Efficient large-area cladding
Lower Heat Input → Reduced distortion in base materials
More Uniform Weld Layers → Consistent thickness across surface
Cleaner Metallurgical Interface → Especially in bimetallic welds

Frequently Asked Questions (FAQ)

Q: What's the difference between welding strip and titanium sheet?
A: Welding strip is optimized for overlay welding, with tighter tolerances, brighter finish, and better surface preparation than general sheet.

Q: What welding processes is this strip compatible with?
A: Primarily Plasma Transferred Arc Welding (PTAW) and Strip TIG Welding, often automated. Not suitable for manual weld feed.

Q: Can you customize width or thickness?
A: Yes. We offer tailored dimensions and even edge conditioning (square, rounded, or chamfered) based on customer request.

Q: How is the strip cleaned for welding?
A: Every coil is degreased, pickled, and vacuum-annealed. Packaging is inert or vacuum-sealed to prevent oxidation.

Q: Is welding strip available in alloy grades like Ti-6Al-4V?
A: Yes, including Ti-6Al-4V, Ti-3Al-2.5V, and Pd-alloyed grades. Full mill certification provided.
