Titanium Flange

High-Performance Corrosion-Resistant Titanium Flanges for Industrial and Aerospace Use

BYC Ti specializes in manufacturing a full range of Titanium Flanges designed for demanding applications where strength, corrosion resistance, and weight reduction are critical. Fabricated from premium grades such as Grade 2, Grade 5 (Ti-6Al-4V), and Grade 7, our flanges ensure leak-free performance in high-pressure and corrosive environments.

All our titanium flange fittings conform to international standards like ASTM B381 / ASME SB381, offering compatibility with global piping systems in aerospace, chemical processing, marine, and medical sectors.

Titanium Flange Key Features

Excellent resistance to corrosion from seawater, chlorides, and acidic chemicals
High strength-to-weight ratio — up to 45% lighter than stainless steel flanges

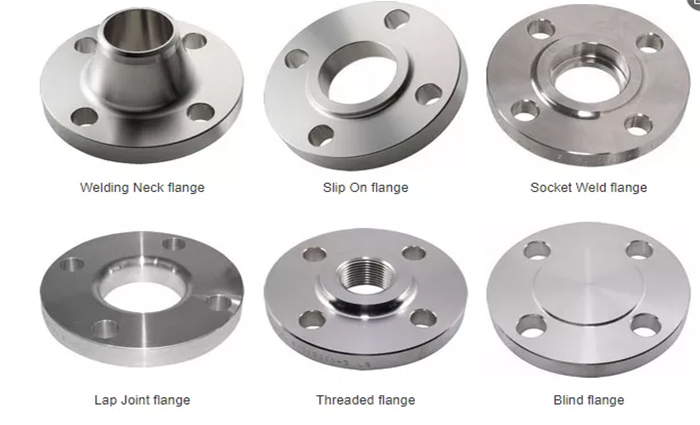

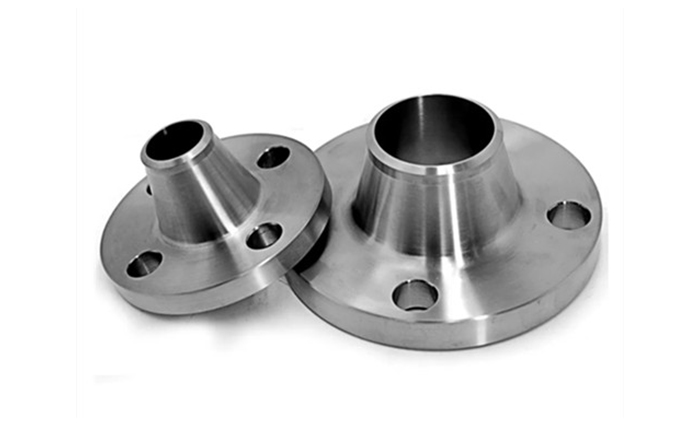

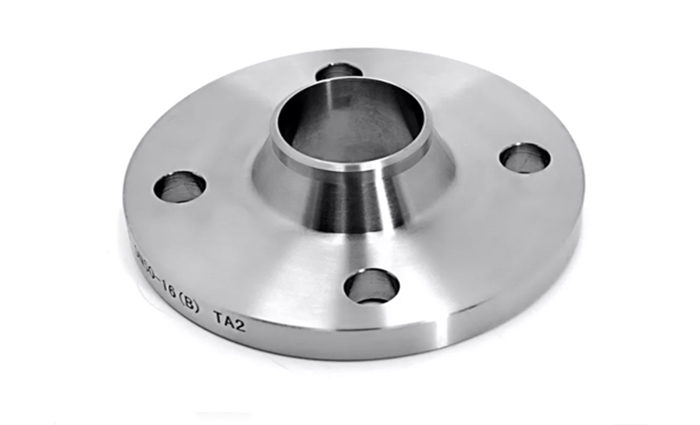

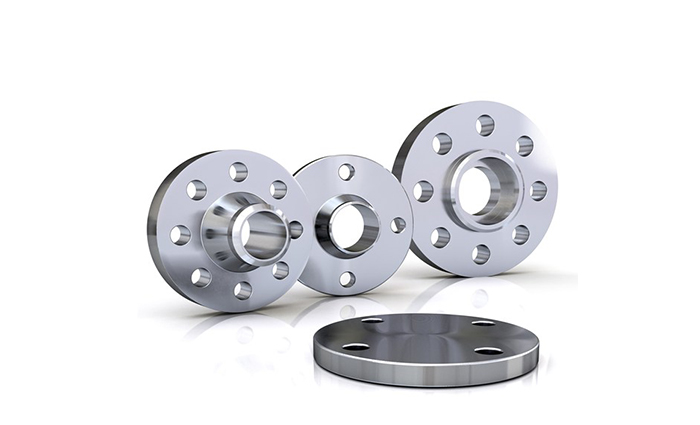

Available types: Weld Neck, Slip-On, Blind, Lap Joint, Threaded, Socket Weld
Smooth machined surface for tight sealing and minimal maintenance
Customizable bolt patterns, face types (RF, RTJ), and dimensions

Titanium Flange Specifications

Parameter	Specification	Notes
Size Range	½" – 24"	Larger sizes available upon request
Pressure Rating	Class 150 – Class 2500	ASME/ANSI-compliant pressure classes
Grades Available	GR2, GR5, GR7, GR9	Conforming to ASTM B381 specifications
Standards	ANSI, DIN, JIS, ASTM	Suitable for international markets
Surface Finish	Pickled, Polished, CNC Machined	Internal/external surfaces for sealing
Connection Type	Butt-weld, Threaded, Socket Weld	Based on flange style and application

Titanium Flange Applications

Aerospace Systems: High-strength flanged joints in aircraft piping
Chemical Plants: Long-life corrosion-resistant flanges in acid handling systems
Marine Engineering: Titanium flanges for seawater systems and offshore rigs
Medical Equipment: Biocompatible flanges for sterile and cleanroom environments
Industrial Equipment: High-purity fluid transfer and process control flanges

Titanium Flange Packaging & Delivery

Individually packed in plastic with export-grade plywood crates

Laser-etched markings: heat number, material grade, and batch tracking

Express delivery by air, sea, or courier to over 50 countries worldwide

Why Choose BYC Ti Titanium Flanges?

Over 20 years of titanium manufacturing experience
ISO 9001 and AS9100 certified production facilities
Reliable supply chain and rapid delivery
OEM customization and project-based flange engineering

Get A Quote Now. Send us your technical drawing or specify the titanium flange type, size, and grade you need. We'll reply within 24 hours with a professional quotation and estimated delivery time.
