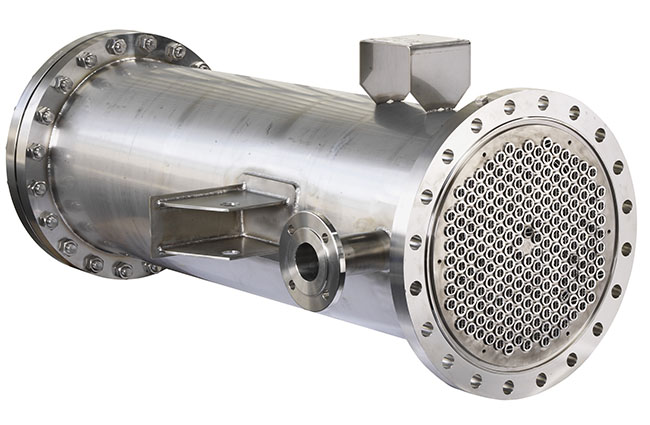

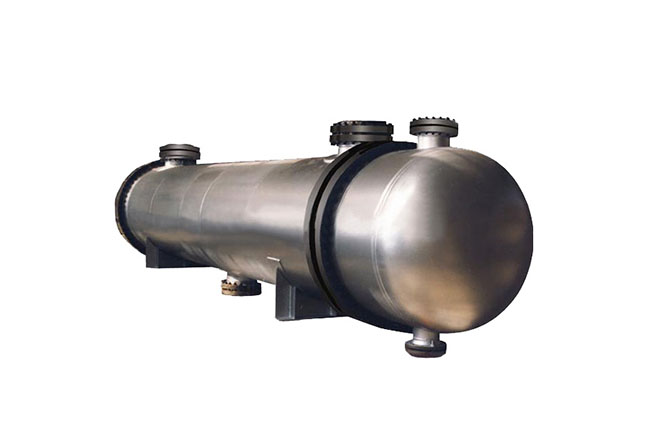

Titanium Shell-Type Components

BYC Ti's Titanium Shell-Type Components redefine structural integrity in demanding applications, combining the unmatched properties of titanium alloys with advanced manufacturing to deliver lightweight, corrosion-resistant, and high-strength enclosures. Engineered for industries where environmental extremes and reliability are non-negotiable—from deep-sea exploration to aerospace propulsion—our titanium shells set new benchmarks for performance and durability.

Product Core Advantages

1. Titanium's Unrivaled Material Profile

Constructed from premium titanium alloys (Ti-6Al-4V, Ti-5Al-2.5Sn, etc.), our shells offer:

Exceptional Corrosion Resistance: Immune to seawater, chlorides, and most aggressive chemicals, with service life 5-10x longer than stainless steel in marine environments.*
High Strength-to-Weight Ratio: 45% lighter than steel while maintaining yield strengths up to 850 MPa, ideal for weight-sensitive applications.
Thermal Stability: Operational integrity from -270°C to 500°C, ensuring performance in cryogenic or high-temperature systems.

2. Precision Manufacturing for Critical Performance

Structural Optimization: Finite Element Analysis (FEA)-validated designs for maximum load distribution, reducing stress concentrations by 40% compared to conventional shells.
Wall Thickness Control: Machined to ±0.05mm precision, enabling thin-wall designs without compromising pressure resistance (up to 1,000 bar for deep-sea applications).
Surface Finish: Electropolished to Ra ≤ 0.4μm, enhancing corrosion resistance and minimizing fluid friction in hydrodynamic applications.

Technical Specifications

Parameter	Standard Range	Custom Options
Material Grade	Ti-6Al-4V, Ti-10V-2Fe-3Al, Ti-3Al-2.5V	Custom alloys per ASTM B348/B381
Diameter Range	100mm – 3,000mm	Special sizes for industrial systems
Wall Thickness	1mm – 50mm	Variable-thickness designs for optimized weight
Operating Pressure	Vacuum to 1,500 bar	Hyperbaric chambers & subsea housings
Manufacturing Process	5-axis CNC machining, spin forming, explosive welding	Additive manufacturing (SLM) for complex geometries

Industry Applications

1. Marine & Subsea

Deep-sea ROV (remotely operated vehicle) pressure housings (rated for 11,000m depth)
Offshore oil & gas subsea equipment enclosures
Corrosion-resistant marine valve bodies

2. Aerospace & Defense

Rocket engine combustion chamber casings
Aircraft hydraulic system pressure vessels
Military-grade sonar dome enclosures

3. Energy & Chemical

High-temperature reactor shells for petrochemical processing
Cryogenic liquid storage tanks (-196°C for LNG applications)
Nuclear facility containment components

Manufacturing Excellence

Our titanium shells undergo a rigorous quality assurance process, including:

Ultrasonic testing (UT) for internal defect detection
Hydrostatic/pneumatic pressure testing up to 1.5x design pressure
3D laser scanning for dimensional accuracy (±0.03mm tolerance)
Thermal cycling tests to validate performance across extreme temperatures

Why Partner with BYC Ti?

Specialized Expertise: 25+ years in titanium component manufacturing for critical industries
Innovative Solutions: Engineering team proficient in solving complex structural challenges
Global Compliance: Certified to ISO 9001, AS9100D, and API 6A standards, with NADCAP accreditation for aerospace components
