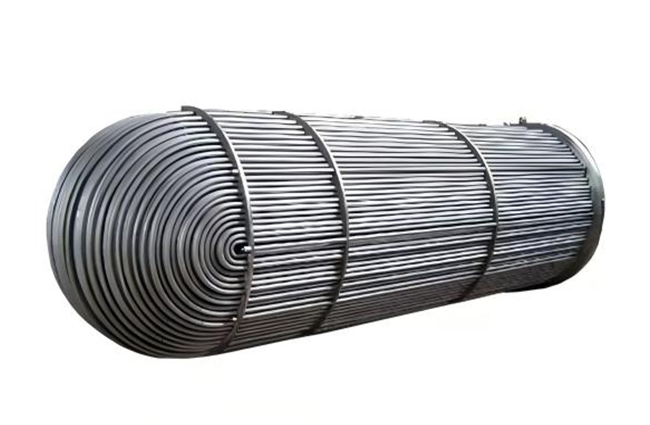

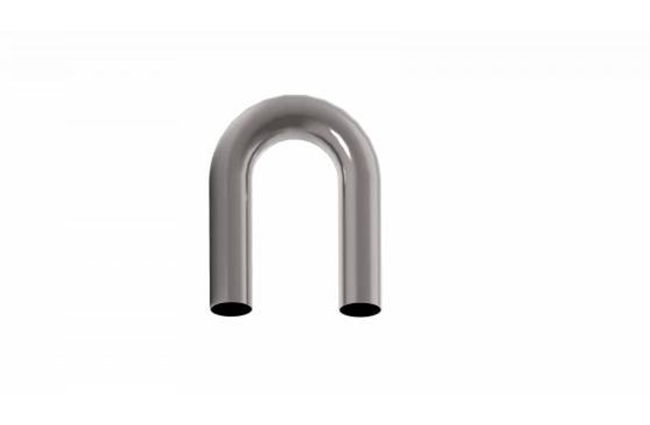

Titanium U-Bent Pipe

Designed for high-performance heat transfer, our Titanium U-Bent Pipes are manufactured via cold working to ensure precise bend radii and uniform wall thickness. Available in Grades 1, 2, 5, 7, 9, and 23, these pipes resist saltwater, acids, and extreme temperatures, making them perfect for heat exchangers, boilers, and offshore applications. With seamless and welded options, our U-bends meet ASTM B338, ASME SB338, and DIN 17861 standards. Customizable in diameter (6.35–76.2mm), wall thickness (0.3–10mm), and bend radius, these pipes undergo 100% hydrostatic testing for leak-proof reliability. Ideal for chemical, power, and marine industries, they reduce maintenance costs while enhancing durability.

Why Choose Titanium U-Bent Pipes?

Corrosion Resistance – Withstands seawater, chlorine, and sulfuric acid (Grades 7 & 12 excel in aggressive environments).
High Strength-to-Weight Ratio – 40% lighter than steel with comparable strength (Grade 5 for aerospace applications).
Thermal Efficiency – Optimized for heat exchangers and condensers, improving energy transfer by 15–20%.
Biocompatibility – Grade 23 (Ti-6Al-4V ELI) is ideal for medical and pharmaceutical uses.
Customizable – Tailored bend radii, lengths (up to 18m), and surface finishes (polished, pickled, or passivated).

Precision Manufacturing Process

Material Selection & Verification

Raw titanium billets undergo spectrometric analysis to verify grade composition

Mill test certificates provided for full material traceability

Tube Formation

Seamless tubes: Produced via rotary piercing

Welded tubes: Formed from rolled sheet with orbital TIG welding

Wall thickness tolerance maintained at ±5%

Cold Bending Process

CNC mandrel bending ensures precise radii (1.5D to 5D)

Computer-controlled back pressure prevents ovality (>90% roundness retention)

Minimum wall thinning (<7% reduction)

Heat Treatment

Stress relief annealing at 650-750°C (varies by grade)

Argon atmosphere prevents oxidation

Grain structure refinement for optimal mechanical properties

Surface Finishing

Pickling in HNO3/HF solution removes surface contamination

Electropolishing available for ultra-smooth surfaces (Ra <0.4μm)

Passivation treatment enhances corrosion resistance

Applications by Industry

Chemical Processing – Reactor coils, acid condensers (Grade 7 resists HCl & H₂SO₄).
Power Generation – Steam condensers, nuclear cooling systems (Grade 2 for longevity).
Marine & Offshore – Desalination plants, shipboard heat exchangers (Grade 1 for seawater).
Aerospace – Hydraulic and fuel line systems (Grade 5 for high stress).
Medical – Sterilization equipment, bio-reactors (Grade 23 for biocompatibility).
