Key Properties
Optimal Strength - to - Weight Ratio: GR9 Titanium Plate offers a remarkable strength - to - weight ratio, being significantly lighter than steel while maintaining substantial tensile strength. This makes it ideal for applications where reducing weight without sacrificing structural integrity is crucial, such as in aerospace and automotive components.
Superior Corrosion Resistance: Exhibiting outstanding resistance to a variety of corrosive environments, including seawater, chloride - containing solutions, and many chemical media, GR9 forms a tenacious oxide film on its surface. This self - healing film provides long - lasting protection, ensuring the longevity of components even in harsh conditions.
Excellent Formability: One of the standout features of GR9 is its high formability. It can be easily cold - worked, hot - worked, bent, and shaped into complex geometries, allowing for the creation of intricate parts with precision. This property simplifies the manufacturing process and enables the production of components with tight tolerances.
Good Fatigue Resistance: GR9 titanium is highly resistant to cyclic loading, reducing the risk of fatigue failure. This makes it suitable for parts that are subjected to repeated stress, ensuring reliable performance over extended periods.
Biocompatibility: With its biocompatible nature, GR9 titanium can be safely used in certain medical applications, providing a reliable option for medical devices that require a combination of strength and compatibility with the human body.
Chemical Composition
Element | Content (%) |
Titanium (Ti) | Balance |
Aluminum (Al) | 2.5 - 3.5 |
Vanadium (V) | 2.0 - 3.0 |
Iron (Fe) | ≤0.30 |
Oxygen (O) | ≤0.20 |
Nitrogen (N) | ≤0.05 |
Hydrogen (H) | ≤0.015 |
Other elements | Trace amounts |
Mechanical Properties
Tensile Strength: 620 - 895 MPa
Yield Strength: 550 - 825 MPa
Elongation: ≥12%
Hardness (Rockwell B): 70 - 95
Dimensions and Tolerances
Thickness: Available from 0.3mm to 100mm, with strict thickness tolerances maintained to ensure consistent quality across all products.
Width: Standard widths range from 500mm to 3000mm. Custom widths can be provided to meet specific project requirements.
Length: Custom - cut lengths are available, with standard lengths up to 6000mm, minimizing material waste and optimizing usage for various applications.
Surface Finish

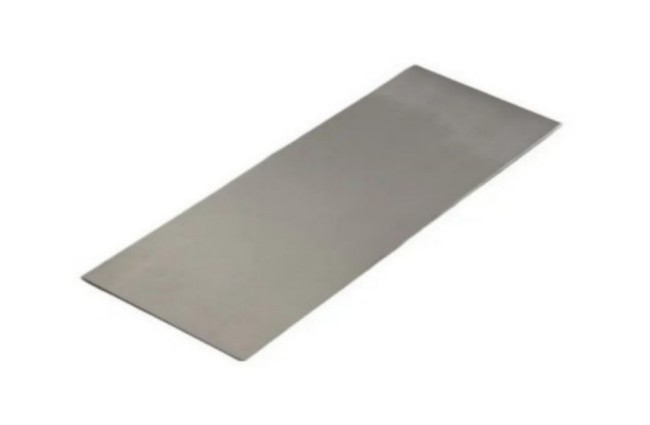

Mill Finish: The standard finish obtained directly from the rolling process, providing a smooth, matte surface that is suitable for most general applications.

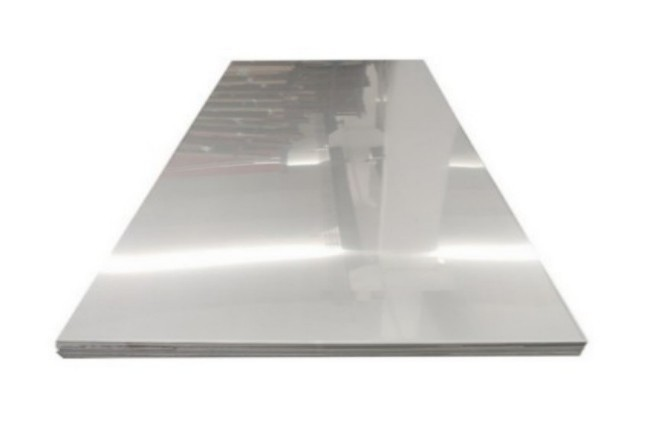

Polished Finish: A high - luster polished surface that not only enhances the aesthetic appeal but also improves corrosion resistance, making it suitable for applications where appearance and protection are important.
Pickled Finish: Removes the oxide layer formed during heat treatment, resulting in a clean, bright surface that is free from surface contaminants and ready for further processing or direct use.
Applications
Aerospace: Widely used in aircraft hydraulic systems, fuel lines, and structural components. Its lightweight and corrosion - resistant properties contribute to improved fuel efficiency and extended service life of aircraft parts.
Automotive: Employed in high - performance automotive components, such as suspension parts, exhaust systems, and engine components. The combination of strength and lightness helps enhance vehicle performance and reduce fuel consumption.
Marine: Ideal for marine applications, including shipbuilding, offshore platforms, and underwater equipment. Its excellent corrosion resistance ensures reliable performance in seawater environments.
Medical: Used in certain medical devices, such as orthopedic implants and surgical instruments, due to its biocompatibility and strength.
Sports Equipment: GR9 titanium is also popular in the production of high - end sports equipment, such as bicycle frames, golf clubs, and tennis rackets, where its lightweight and durable properties enhance performance.
Quality Assurance
Quality is the cornerstone of our GR9 Titanium Plate production. Each plate undergoes a multi - stage quality control process:
Raw Material Testing: Stringent inspection of incoming raw materials to verify chemical composition and mechanical properties.
In - Process Quality Checks: Continuous monitoring during manufacturing processes, including rolling, heat treatment, and cutting, to ensure dimensional accuracy and property consistency.
Final Inspection: Every plate is subjected to non - destructive testing (such as ultrasonic and eddy - current testing), mechanical property testing, and chemical analysis. Only products that meet or exceed international standards, including ASTM B863, ASME SB - 863, and ISO 5832 - 9, are approved for delivery.
Customization Options
We recognize that each project has unique demands. Our customization services include:
Size and Shape Customization: Tailoring plates to specific thicknesses, widths, and lengths to fit your exact project requirements.
Surface Treatment Customization: Offering customized surface finishes, such as specialized coatings or textures, to enhance functionality or appearance.
Property Customization: Through heat treatment and other processes, we can adjust the mechanical properties of the plates to meet specific application needs.
Ordering and Delivery
Ordering our GR9 Titanium Plates is hassle - free. Simply contact our sales team with your detailed specifications, and we will provide you with a competitive quote. We offer flexible delivery options, ensuring that your order is packaged securely and delivered on time, whether you need small - scale or large - volume shipments.
Choose our GR9 Titanium Plates for unparalleled quality, performance, and reliability. Contact us today to discuss your project and find the perfect solution for your high - performance needs.
