Key Properties
Superior Biocompatibility
Compliant with ASTM F136 and ISO 5832-3 standards, GR23 is non-toxic, hypoallergenic, and osseointegrative, making it ideal for long-term human implantation.
High Strength & Durability
With a tensile strength of 860–1030 MPa (3x stronger than pure titanium), GR23 withstands heavy loads and cyclic stress, perfect for orthopedic implants and aerospace structures.
Exceptional Corrosion Resistance
Resists degradation in body fluids, seawater, and chemical environments, thanks to its stable oxide film (TiO₂) that self-repairs after surface contact.
Heat Treatable
Can be age-hardened to tailor mechanical properties, ensuring precision performance in demanding applications.
Chemical Composition
Element | Content (%) |
Titanium (Ti) | Balance |
Aluminum (Al) | 5.5–6.5 |
Vanadium (V) | 3.5–4.5 |
Iron (Fe) | ≤0.30 |
Oxygen (O) | ≤0.20 |
Nitrogen (N) | ≤0.05 |
Hydrogen (H) | ≤0.015 |
Other elements | ≤0.40 (total) |
Mechanical Properties
Tensile Strength: 860 - 1030 MPa
Yield Strength: ≥795 MPa (0.2% offset)
Elongation: ≥10%
Hardness (Rockwell C): 30 - 38 HRC
Elastic Modulus: 110 GPa
Dimensions and Tolerances
Thickness: 0.5mm to 50mm (tolerance: ±0.05mm for thickness ≤3mm)
Width: Standard widths from 500mm to 1500mm (custom widths up to 2000mm available)
Length: Custom lengths up to 4000mm (precision cutting for minimal waste)
Surface Finish

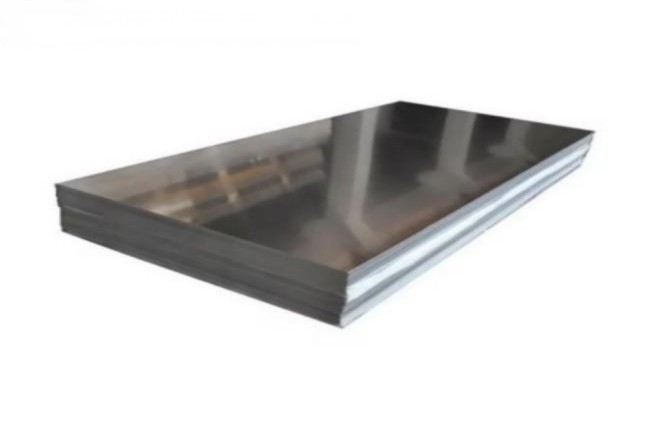

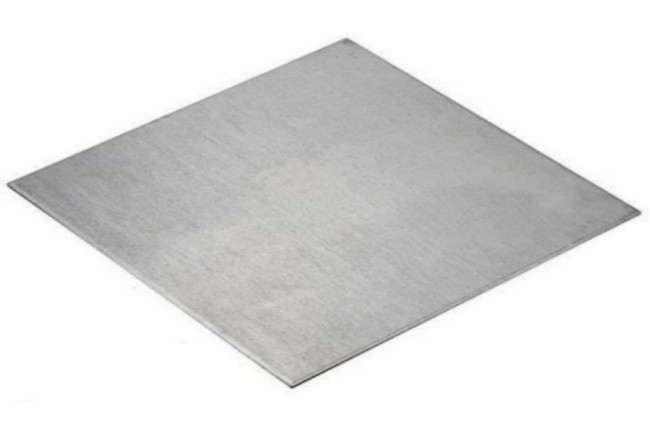

Our GR23 Titanium Plates are available in multiple finishes:
Mill Finish: As-rolled surface, ideal for general industrial use.
Electropolished: Ultra-smooth finish (Ra ≤0.2μm) for medical implants and aerospace components.
Annealed: Stress-relieved for improved dimensional stability.
Passivated: Acid-treated to enhance corrosion resistance.
Applications
Medical Implants:
Orthopedic devices (hip/knee replacements, spinal screws)
Craniofacial plates and dental implants
Aerospace:
High-stress aircraft parts (landing gear, engine brackets)
Satellite and missile components
Marine & Offshore:
Subsea equipment and corrosion-resistant structural parts
Industrial:
Chemical reactor components and high-performance machinery
Quality Assurance
At BYC Ti, we ensure uncompromising quality:
Rigorous testing: Chemical analysis, ultrasonic inspection, and fatigue testing.
Compliance with ASTM F136, ISO 13485 (medical), and AS9100 (aerospace).
Full traceability: Lot numbers and heat treatment records provided for every plate.
Customization Options
Need a specific size, finish, or certification? Our team offers:
Custom machining and welding
Sterile packaging for medical applications
Tailored mechanical properties via heat treatment
Ordering and Delivery
Contact our sales team with your specifications for a competitive quote.
Fast turnaround: Stock items shipped in 3–5 days; custom orders in 20–30 days.
Global shipping: Secure packaging (wooden crates, anti-static film) and reliable logistics.
Experience GR23 Excellence
Trust GR23 Titanium Plate for applications where safety, strength, and biocompatibility are non-negotiable. Contact us today to discuss your project and receive a sample or detailed specification sheet.
